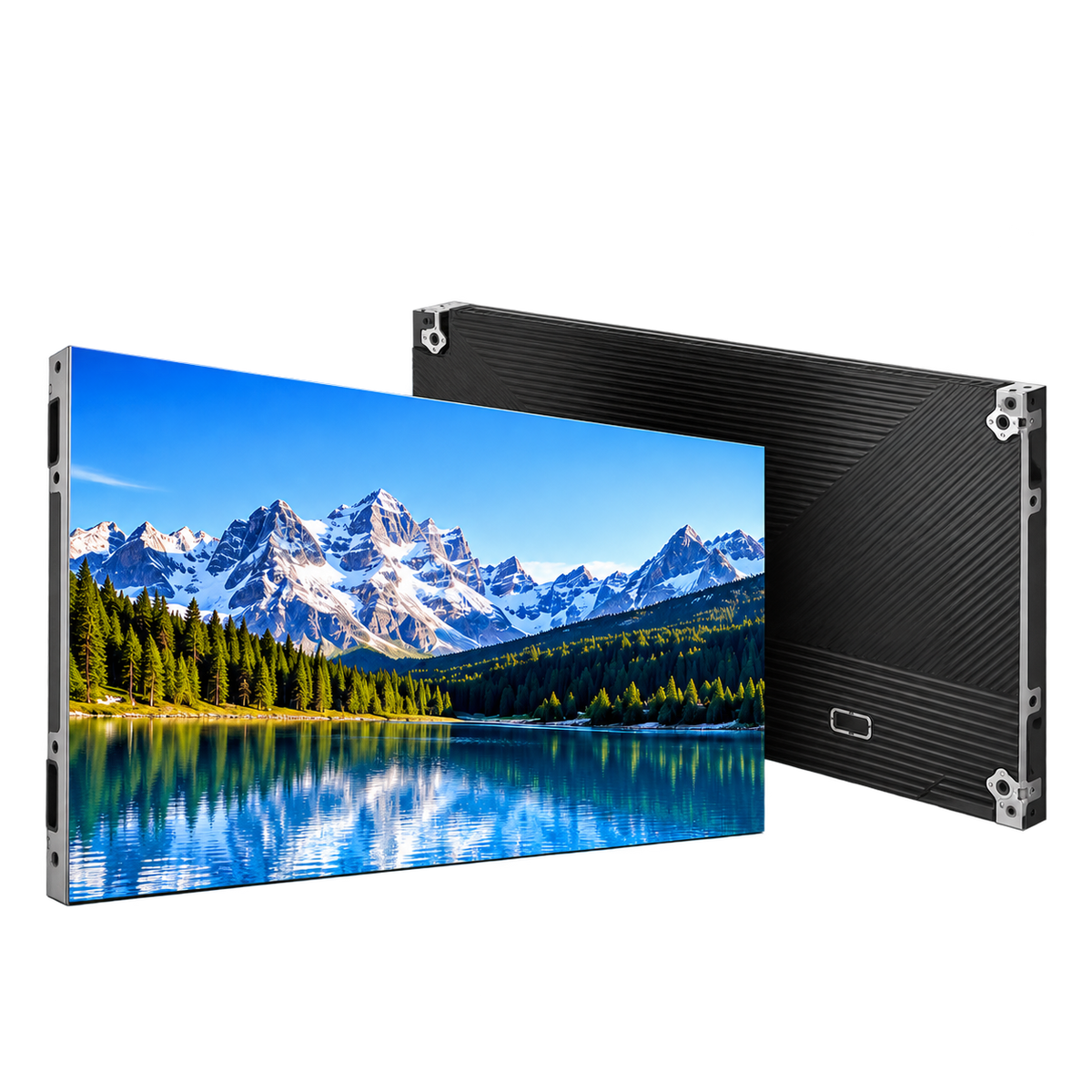

High-Resolution Indoor COB LED Display
The Signery Digital

High-Resolution Indoor COB LED Display

Australia-wide supply & project support
Delivery, installation and technical requirements are confirmed as part of your project quote.

A high-resolution indoor COB LED display designed to deliver smooth, detailed visuals in professional environments. Its seamless 16:9 design, wide viewing angles and COB packaging make it well suited to applications where image quality and comfortable close-range viewing are important.

Key Specs

COB LED technology with Mini Chip LED
Pixel pitch options: P1.25, P1.5625 and P1.875
Standard cabinet: 600 × 337.5 mm
Cabinet weight: 4.5 kg
Brightness: 1200 cd/m²
Viewing angle: 160° horizontal / 140° vertical
Contrast ratio: up to 30,000:1
Refresh rate: 3840Hz, with compatible IC drivers supporting up to 7680Hz
16:9 aspect ratio
13–22 bit grayscale
Average power consumption: 150–170 W/m²
Maximum power consumption: 310–350 W/m²
Operating temperature: -10°C to +45°C
Rated lifetime: 100,000 hours
CE EMC, RoHS and FCC certified

Ideal Applications

Suitable for broadcast studios, control rooms, conference environments, showrooms and other professional indoor spaces requiring high-resolution digital displays.

Planning Your Display

Not sure what display specification you need? Viewing distance, installation location, indoor or outdoor use, display size, brightness requirements and content type can all influence the right solution. Tell us about your project and our team can help you plan a suitable LED display for your space.

How we work

01
Tell us about your space
02
We help specify the display
03
Quote & technical planning
04
Supply / installation coordination
